Products Probes

HSRX GF

Redox electrodes (ORP) with GOLD sheet

Probes

Description

HSRX GF is a gold foil electrode combined for measurement of Redox potential (ORP).
It has glass body and BNC connector.
The spherical tip is protected by an extension of the electrode body.
Suitable for use in all waters, even those with low conductivity. Grants high bridging due to the gold (Au) foil lining the spherical bulb.
Highly resistant to chemicals, it is ideal for general laboratory and direct field applications.

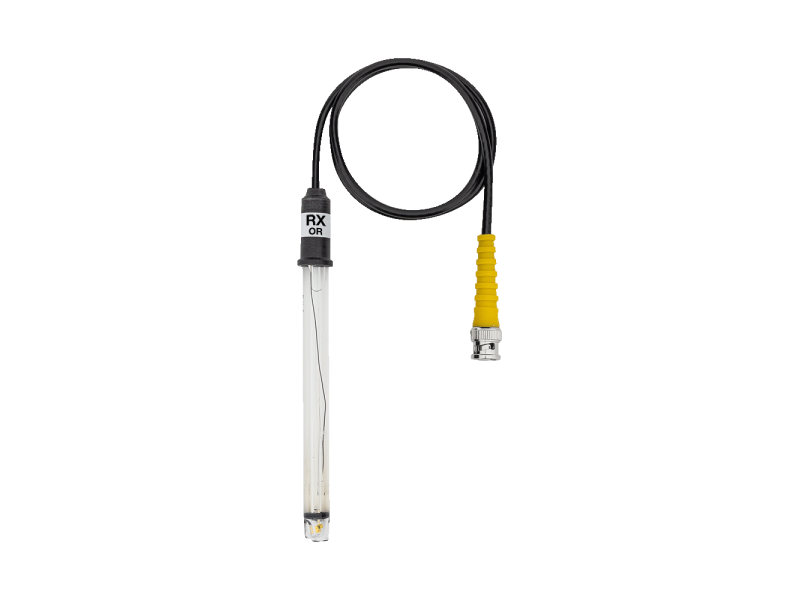

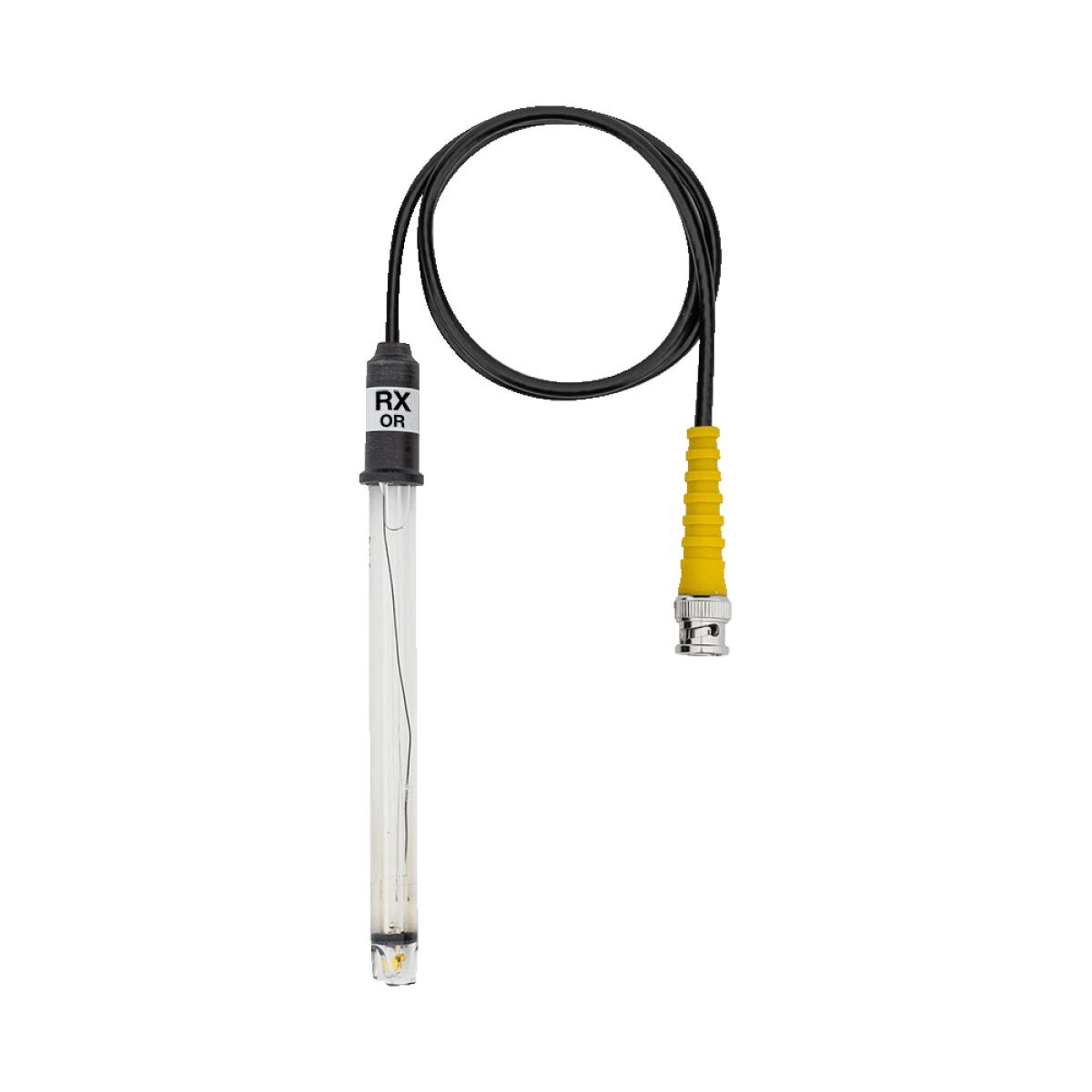

Connection type : RG58 / RG174(*) coaxial cable with BNC connector. (**)

(*) Standard cable length: 1mt / 5mt / 10mt (any size can be ordered on request).

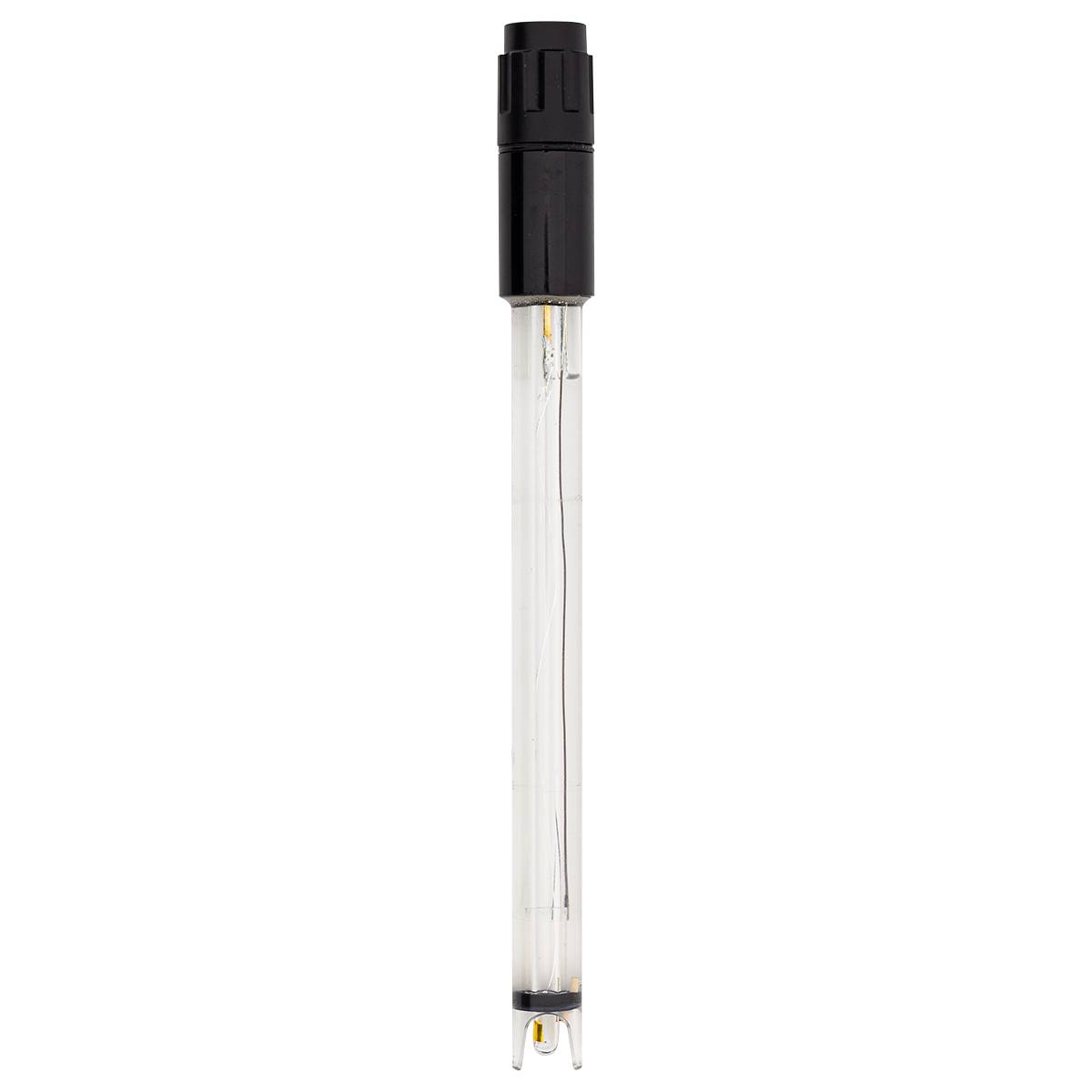

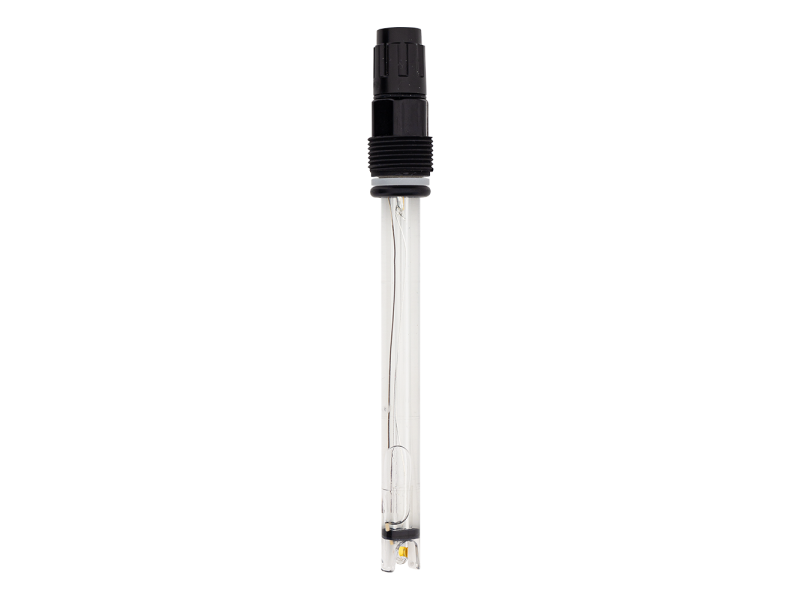

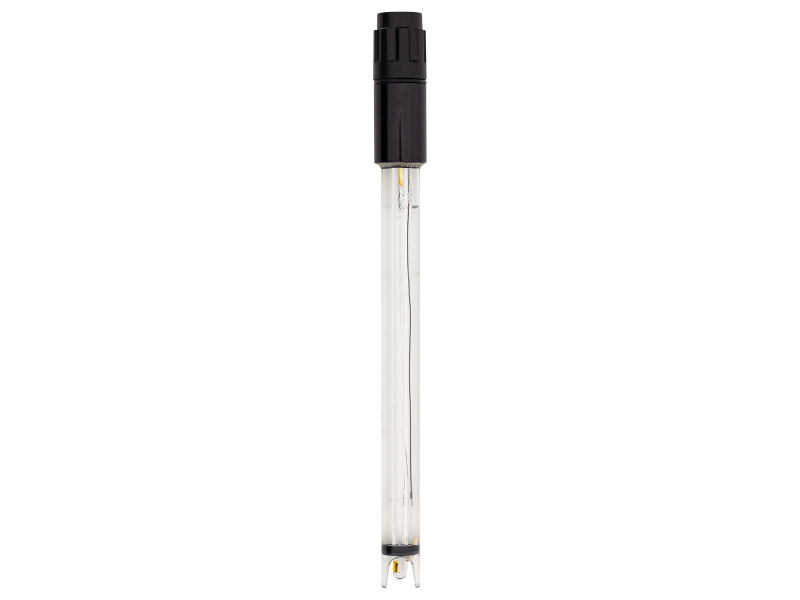

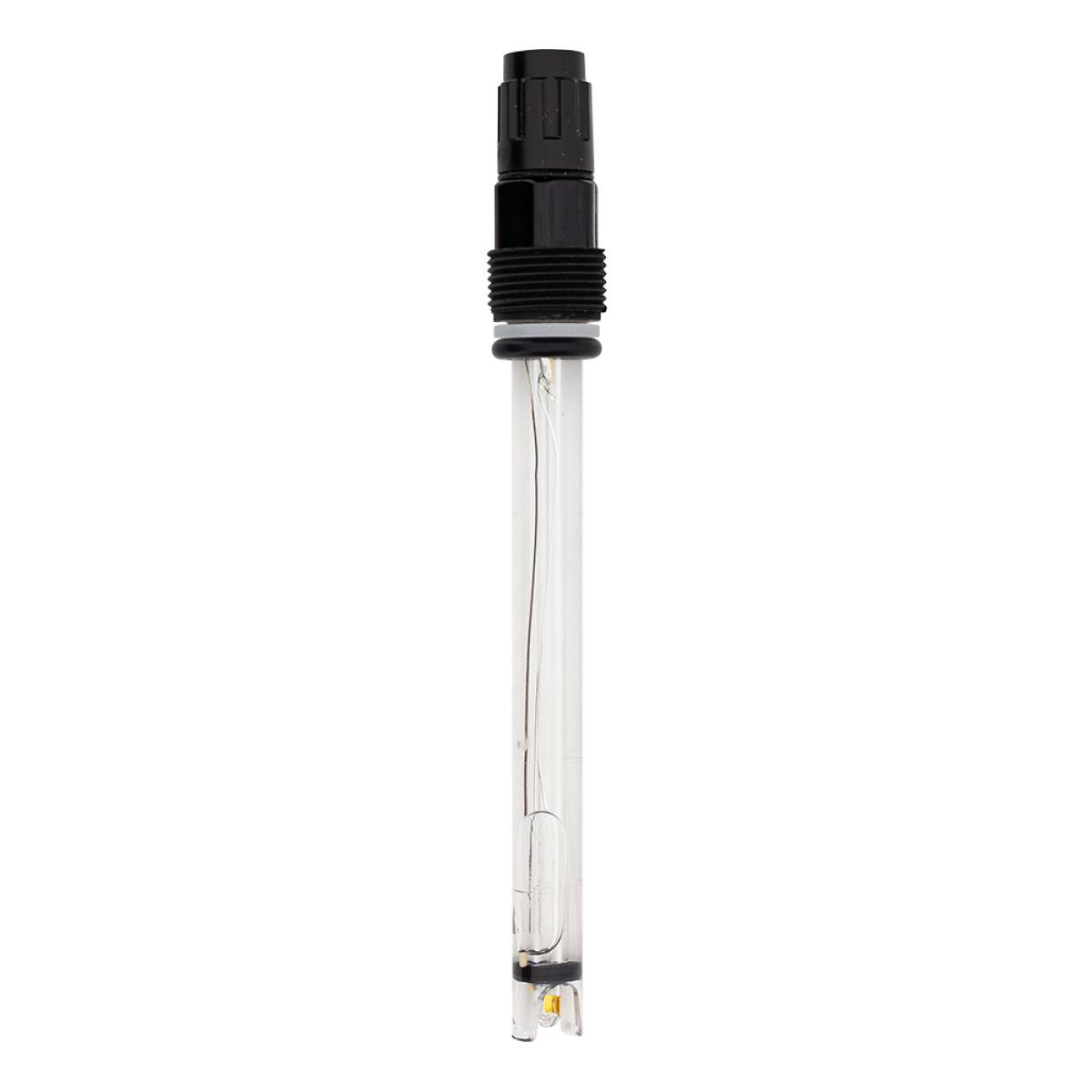

(**) Also available with S7 and S8 screw connection.

Show more Hide
Request information

Technical characteristics

Electrode material Glass
Diaphragm material Ceramic
Stem diameter 12mm
Stem length 120mm
Tip Spherical
Electrolyte Gel
Membrane Gold (Au)
Measuring field ± 2000mV
Max working pressure 6bar
Temperature range 0 - 80°C
Minimum immersion depth 20mm
Reference system Ag/AgCl
