HSRX

Redox electrodes (ORP)

Probes

Description

The HSRX is a combined electrode for measuring Redox potential (ORP) with a glass body and BNC connector.
The spherical tip is protected by an extension of the electrode body.
Suitable for use in all waters, even those with low conductivity.
Highly resistant to chemicals, it is ideal for general laboratory and field applications.

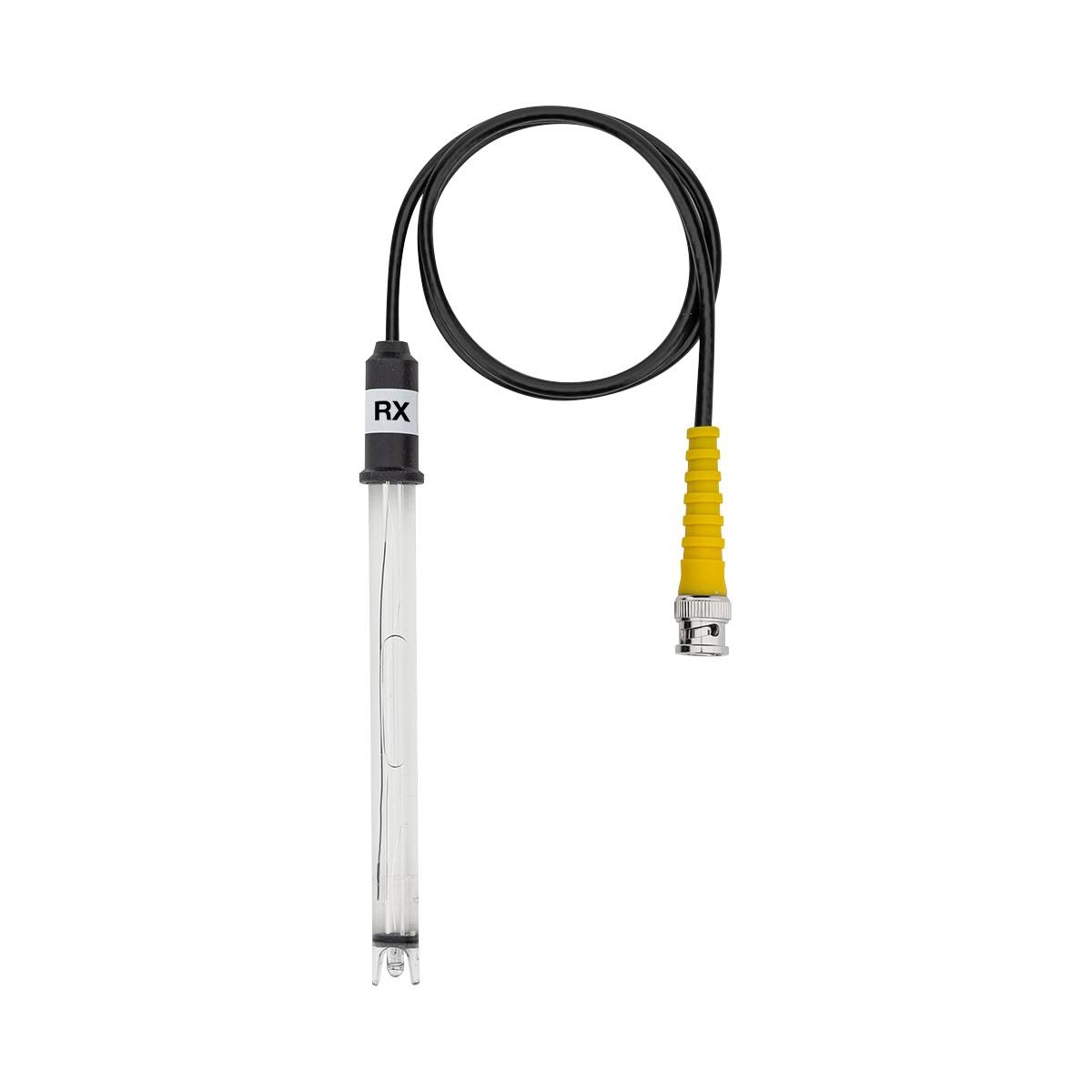

Connection type : RG58 / RG174(*) coaxial cable with BNC connector. (**)

(*) Standard cable length : 1mt / 5mt / 10mt (any size can be ordered on request).

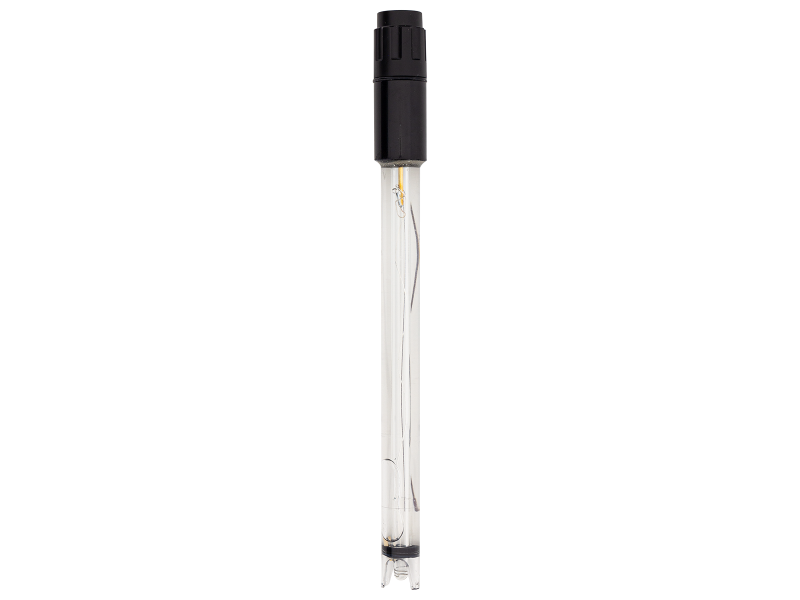

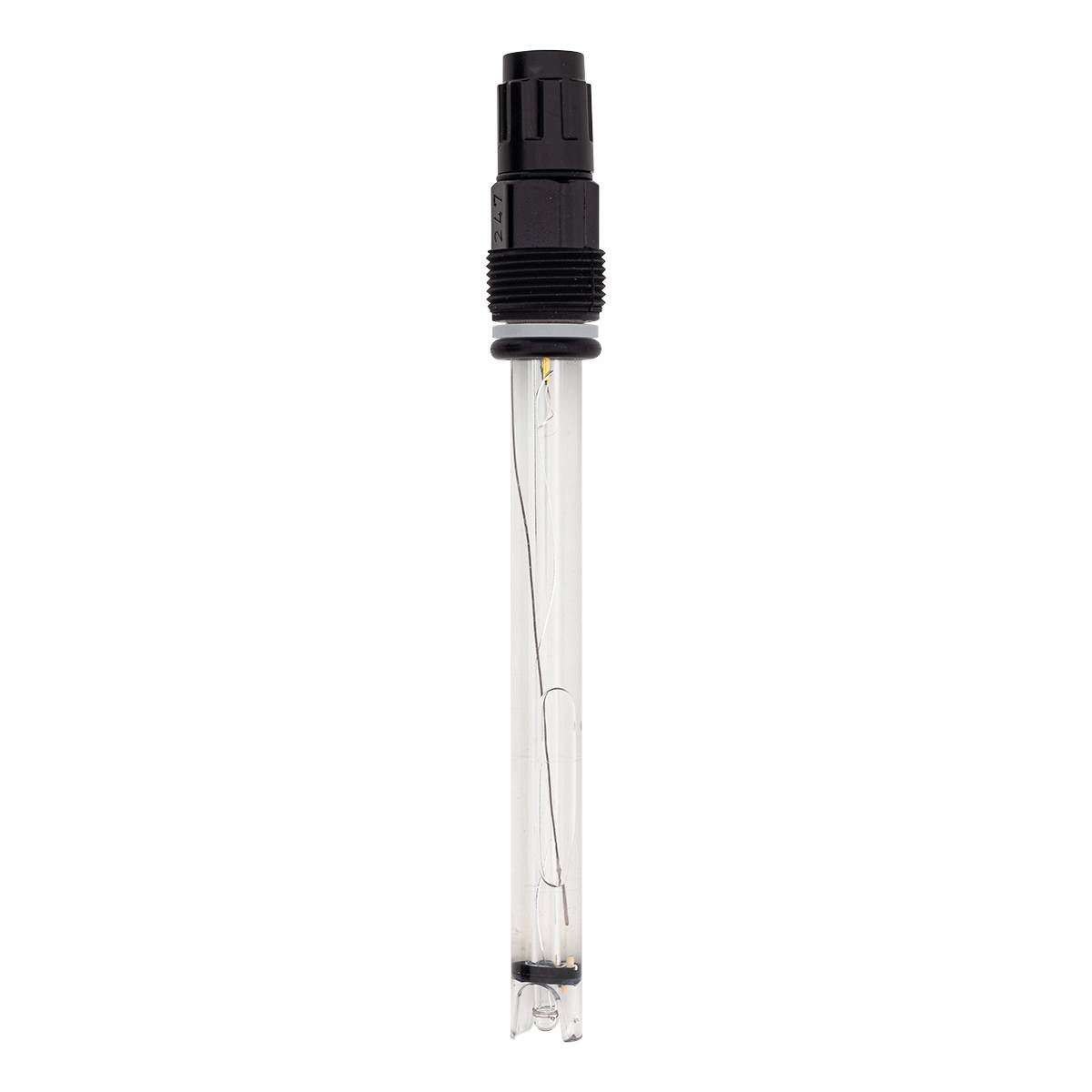

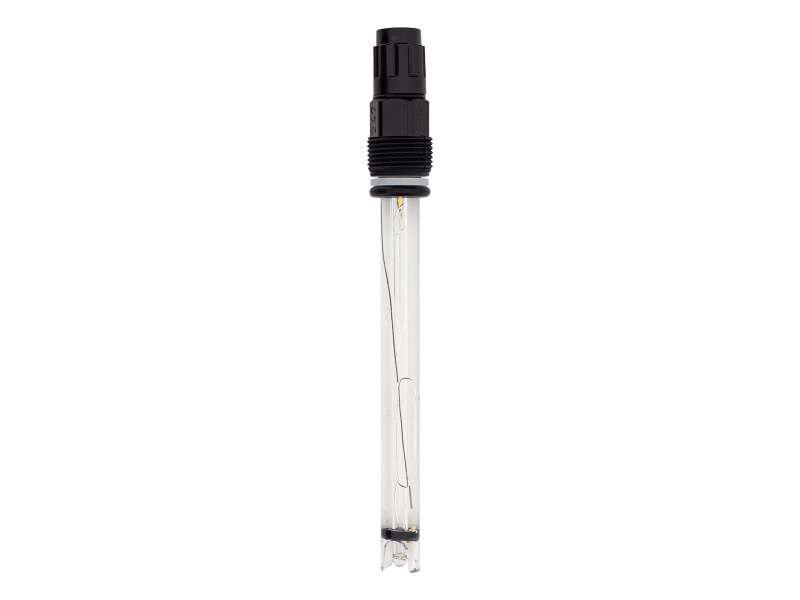

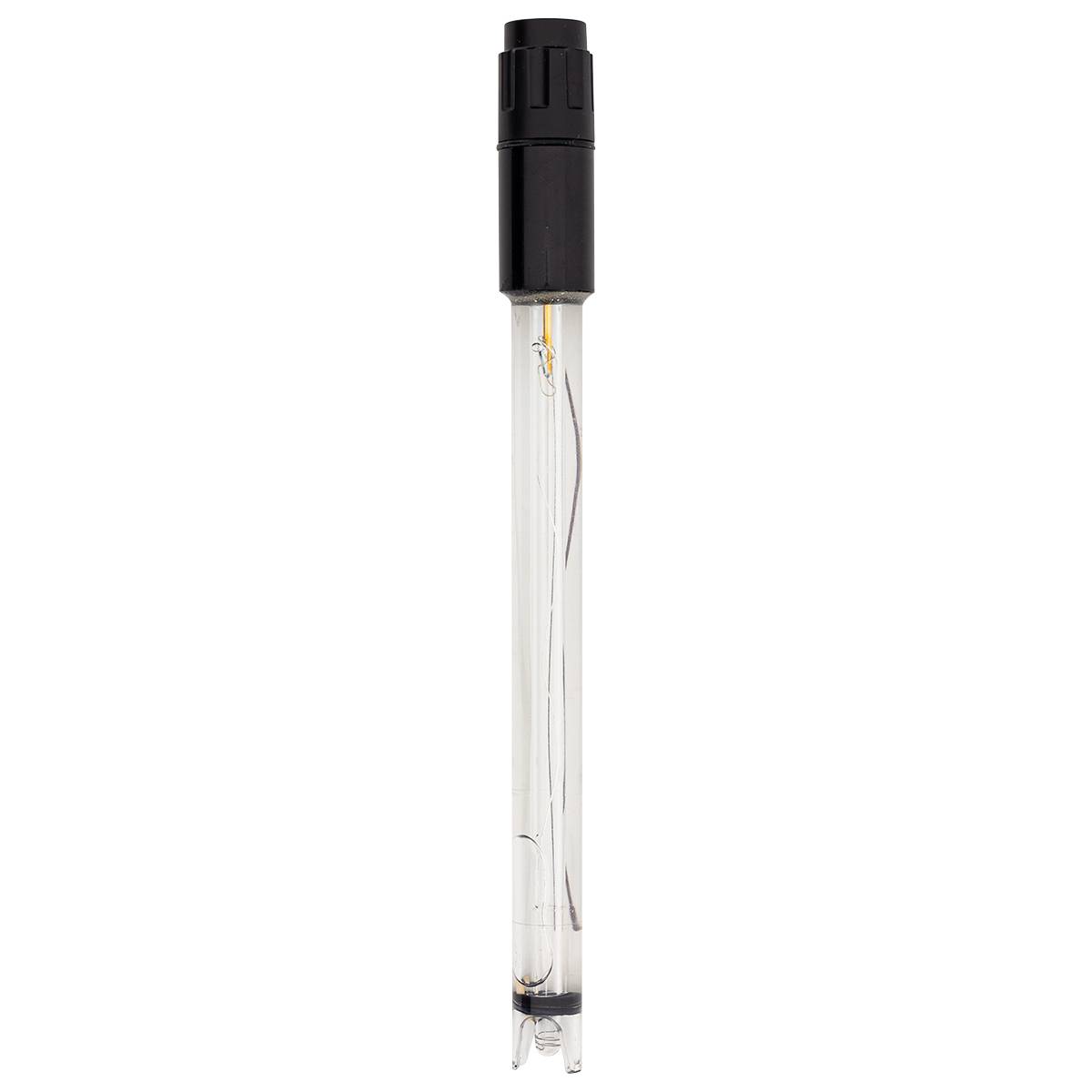

(**) Also available with S7 and S8 screw connection.

Show more Hide
Request information

Technical characteristics

Electrode material Glass
Diaphragm material Ceramic
Stem diameter 12mm
Stem length 120mm
Tip Spherical
Electrolyte Gel
Measuring field ± 2000mV
Max working pressure 6bar
Temperature range 0 - 80°C
Minimum immersion depth 20mm
Reference system Ag/AgCl
