HSPH BL

Blue pH electrodes - for horizontal mounting

Probes

Description

HSPH BL is a combined pH electrode with glass body and BNC connection for horizontal mounting.
Inside is a blue-colored gel.
The spherical tip is protected by an extension of the electrode body.
Fast and highly resistant to chemicals, it is ideal for general laboratory and direct field applications.

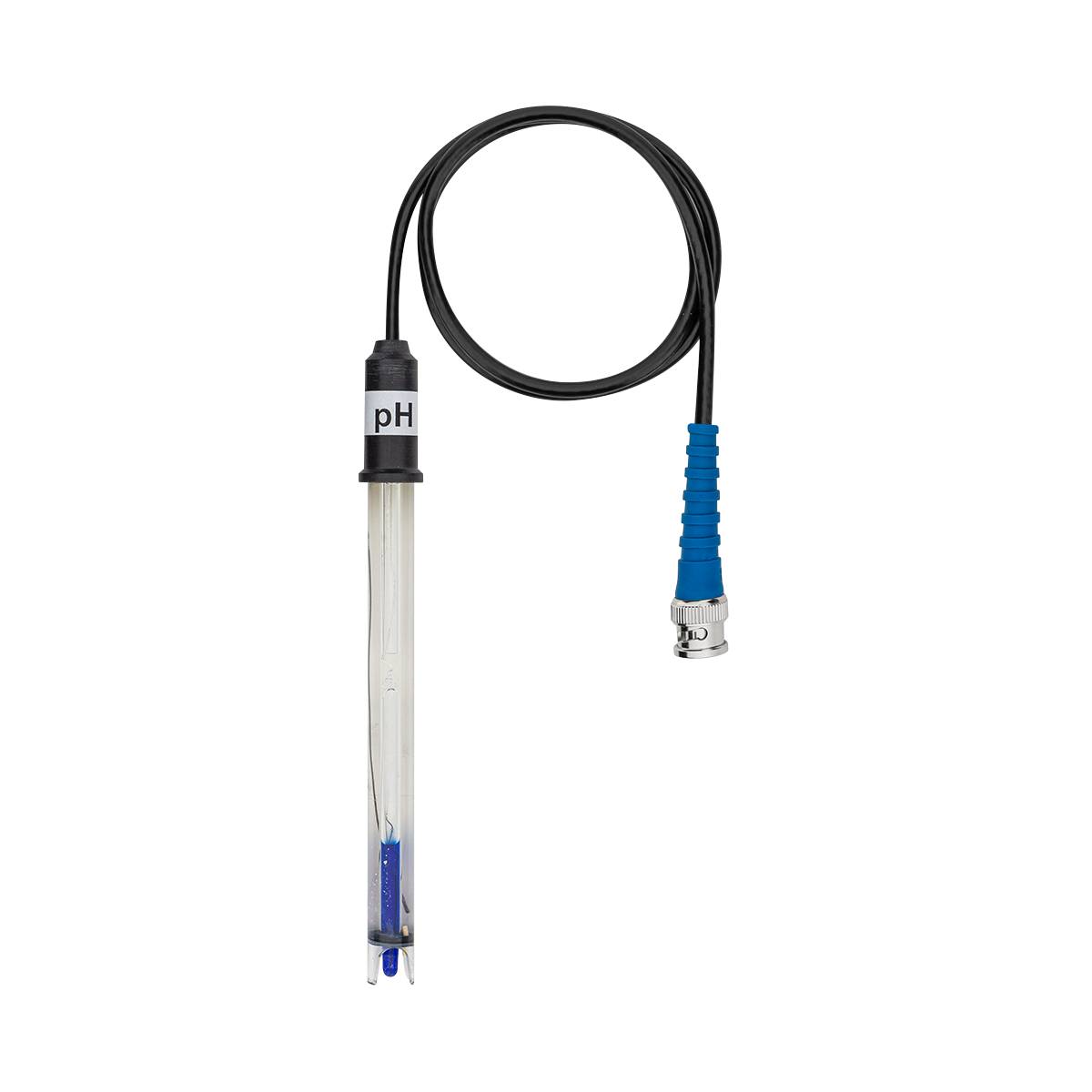

Connection type : RG58 / RG174(*) coaxial cable with BNC connector. (**)

(*) Standard cable length: 1mt / 5mt / 10mt (any size can be ordered on request).

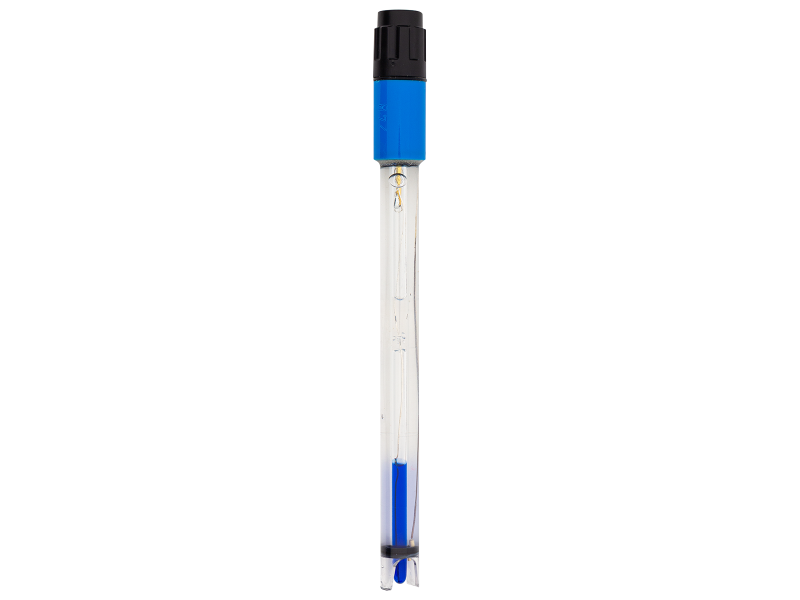

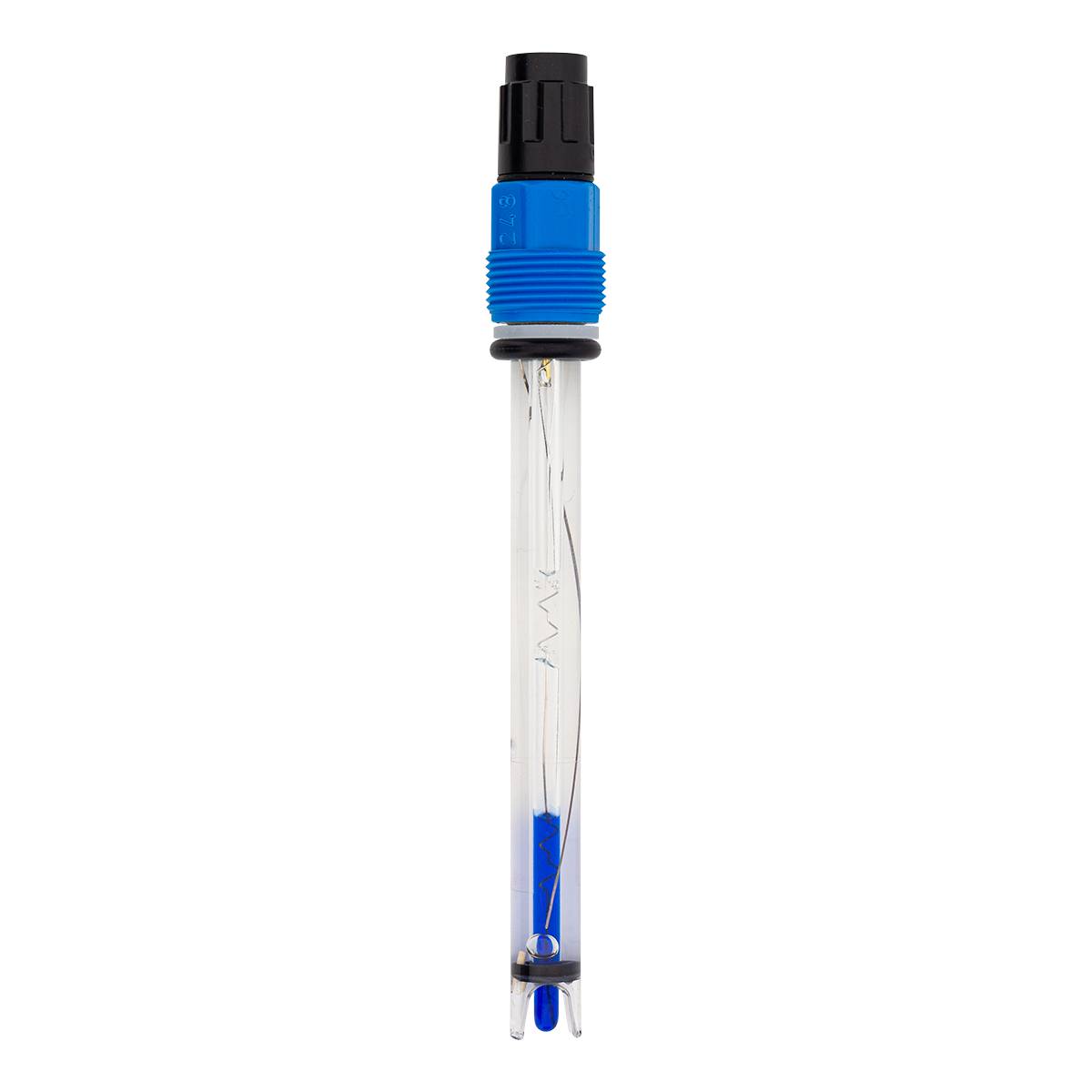

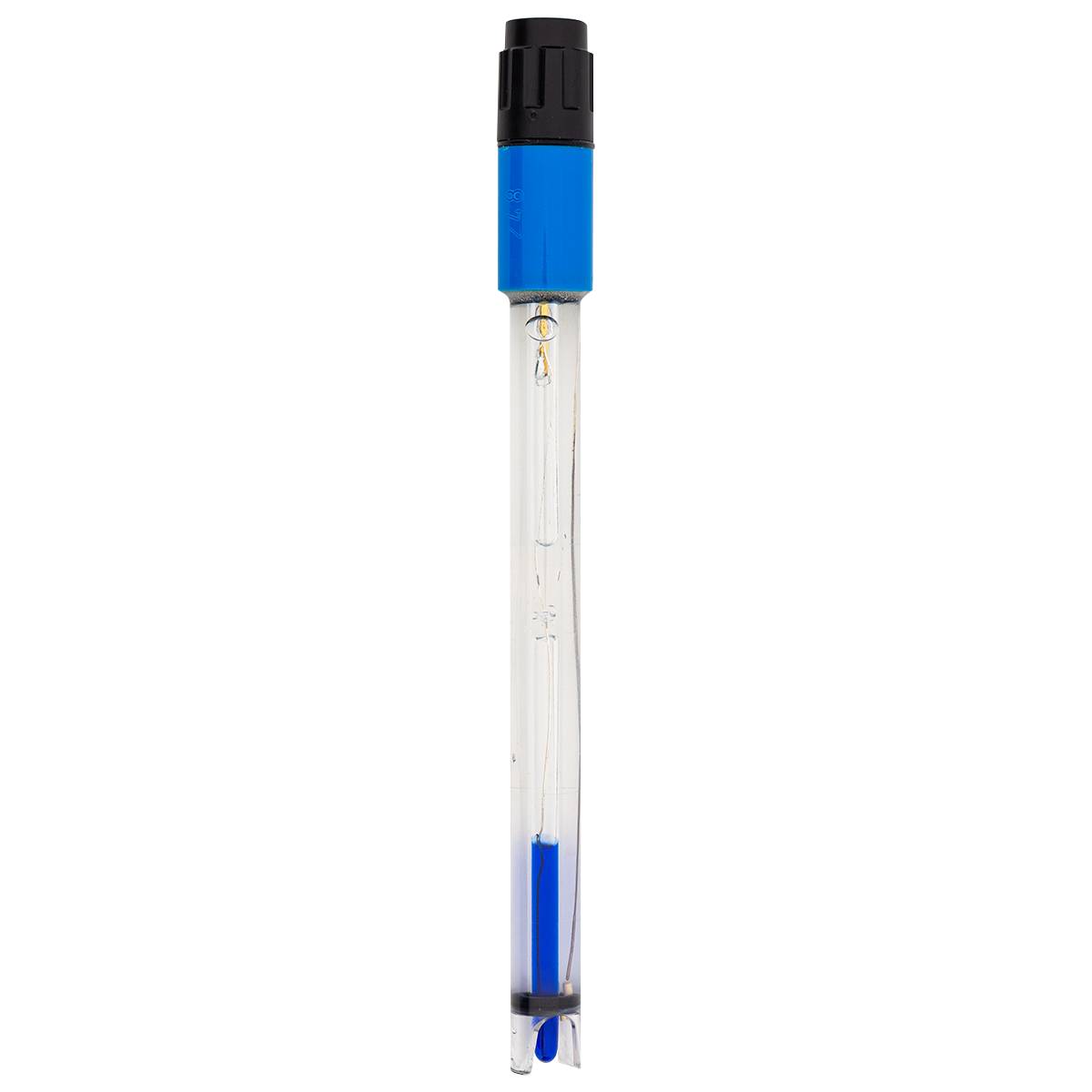

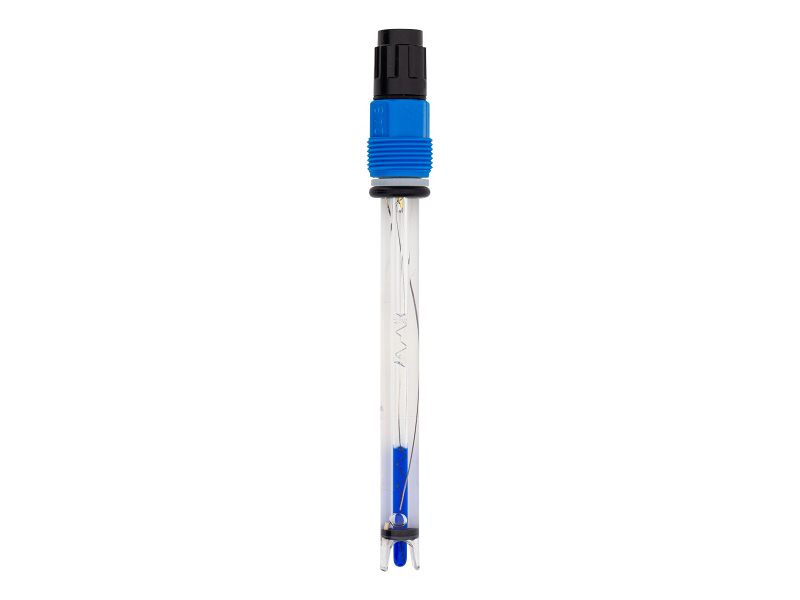

(**) Also available with S7 and S8 screw connection.

Show more Hide
Request information

Technical characteristics

Electrode material Glass
Diaphragm material Ceramic
Stem diameter 12mm
Stem length 120mm
Tip Spherical
Electrolyte Blue Gel
Measuring field 0 - 14.00pH
Max working pressure 6bar
Temperature range 0 - 80°C
Minimum immersion depth 20mm
Reference system Ag/AgCl
