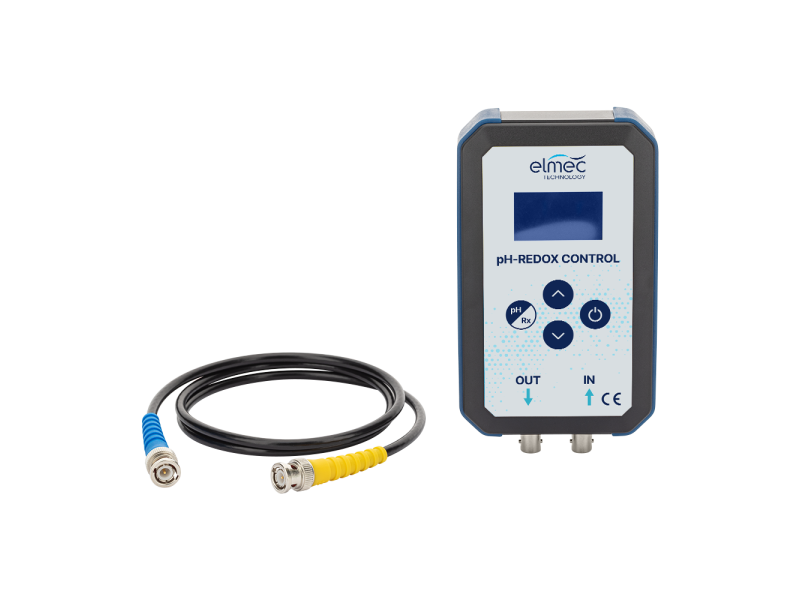

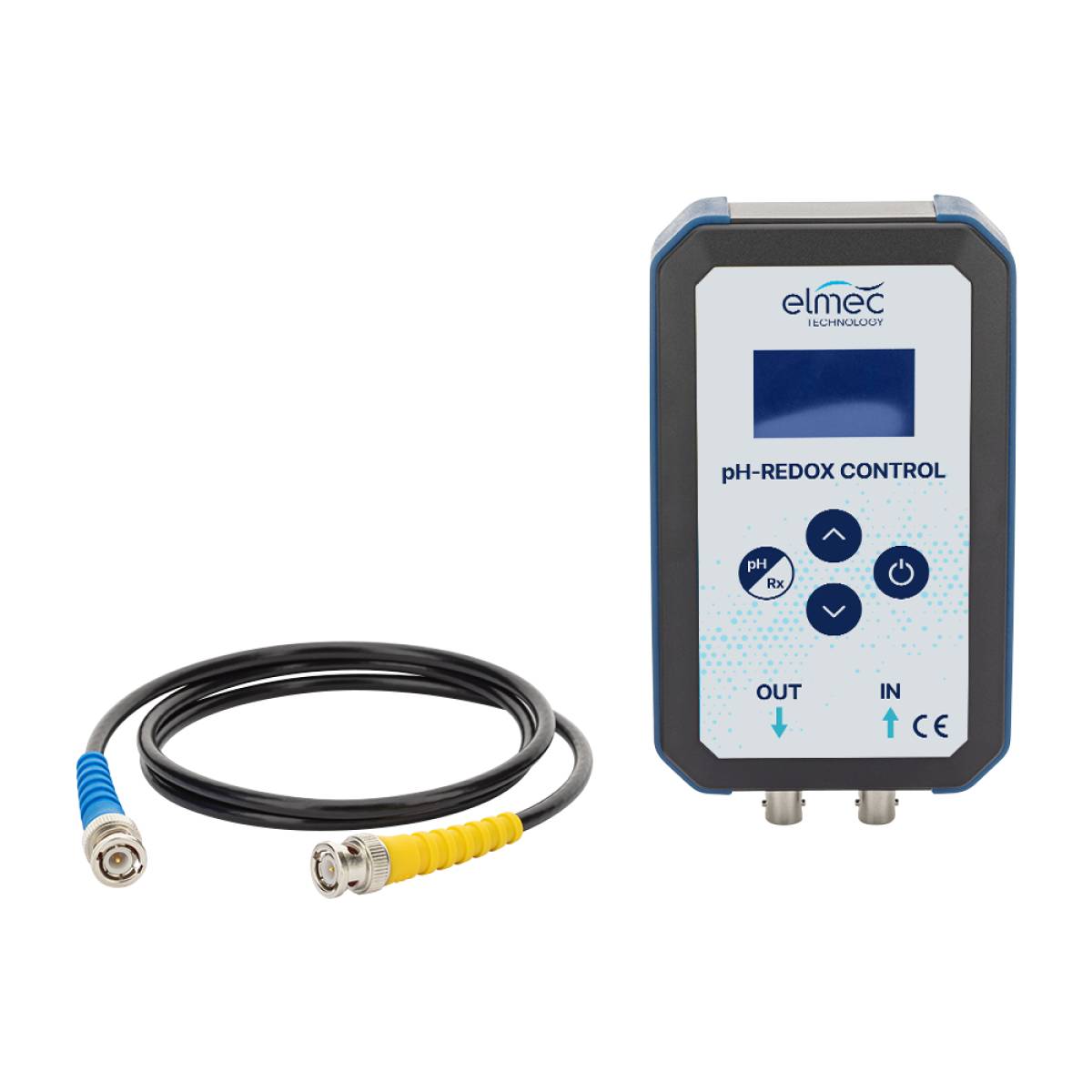

pH/REDOX CONTROL

Portable instrument for pH and ORP (ORP) simulation and testing

Measuring instruments

Description

The simulator/regulator pH/REDOX CONTROL is the indispensable tool for any technician.

Thanks to its compact form, it can be used in the laboratory or directly at the scene of an intervention. Convenient and practical, it is equipped with a LCD display with liquid crystal and a waterproof case.
It allows you to check the health status of any pH and/or Redox (ORP) probe with a BNC connection. In addition, due to its dual function, pH/REDOX CONTROL easily replaces pH and Redox probes, avoiding handling with calibration solutions.

In combination with a pH probe and/or a Redox probe, it can also be used to control parameters directly in the basin.

pH/Redox CONTROL is sold and shipped with a kit consisting of:

  • Simulator/Redox Controller with AA batterys included;
  • 1m long cable with BNC F/F connections;
  • Waterproof case and instruction manual.

Please note that all material is covered by a 2-year warranty.

OPTIONAL: pH 4.0 / pH 7.0 / Redox 650mV buffer solutions.

Show more Hide
Request information

Technical characteristics

Height 146mm
Width 88mm
Depth 33mm
Display LCD with liquid crystal
Power supply voltage 4,5V
Minimum operating temperature 5°C
Maximum operating temperature 50°C
Minimum measuring range 0 - 14pH
Maximum measuring range 0 - 1000mV
Accuracy ± 0.1 pH / ± 1 mV
Weight 250g
Battery type AA - 3 X 1,5V
Frame IP67
